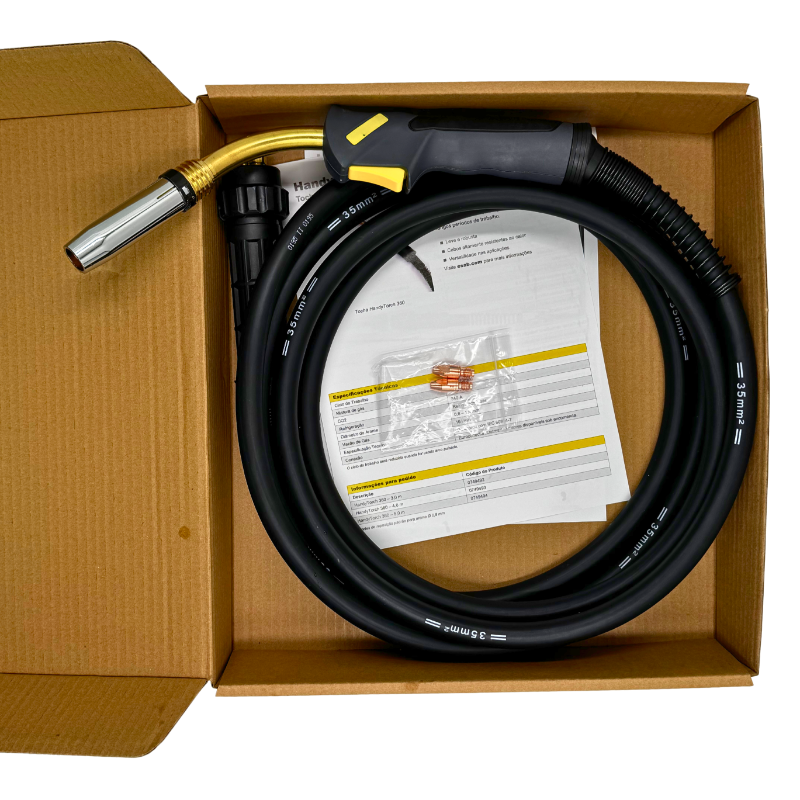

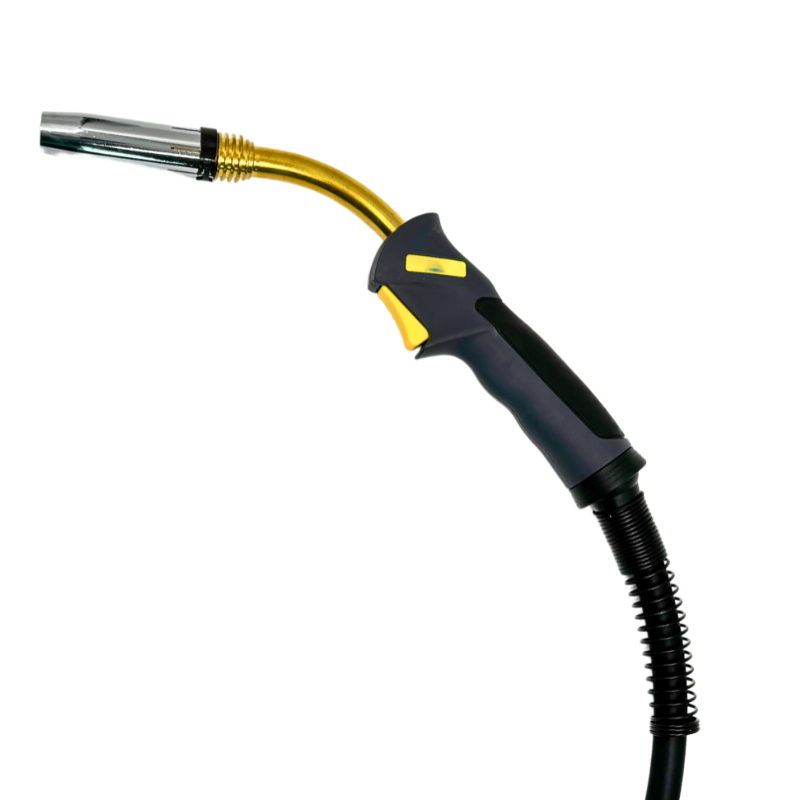

HFT‑Q360A Europe‑Fitting Air‑Cooled MIG Welding Gun
An ergonomic, high‑performance welding torch engineered for professional MIG applications. The Q360A features Europe‑standard consumables, robust construction, and a user‑friendly design to ensure consistent, high‑quality welds in demanding production environments.
High‑Output Capability: 340 A (CO₂) / 300 A (mixed gas) rating for thick‐section welding.
Versatile Wire Compatibility: Accepts 0.8–1.6 mm wire for a wide range of electrode materials and applications.
60 % Duty Cycle: Reliable operation under continuous use in industrial settings.
Europe‑Style Consumables: Standard nozzles, contact tips, and diffusers for easy replacement and global parts availability.
Air‑Cooled Design: Lightweight torch body minimizes operator fatigue during long weld runs.

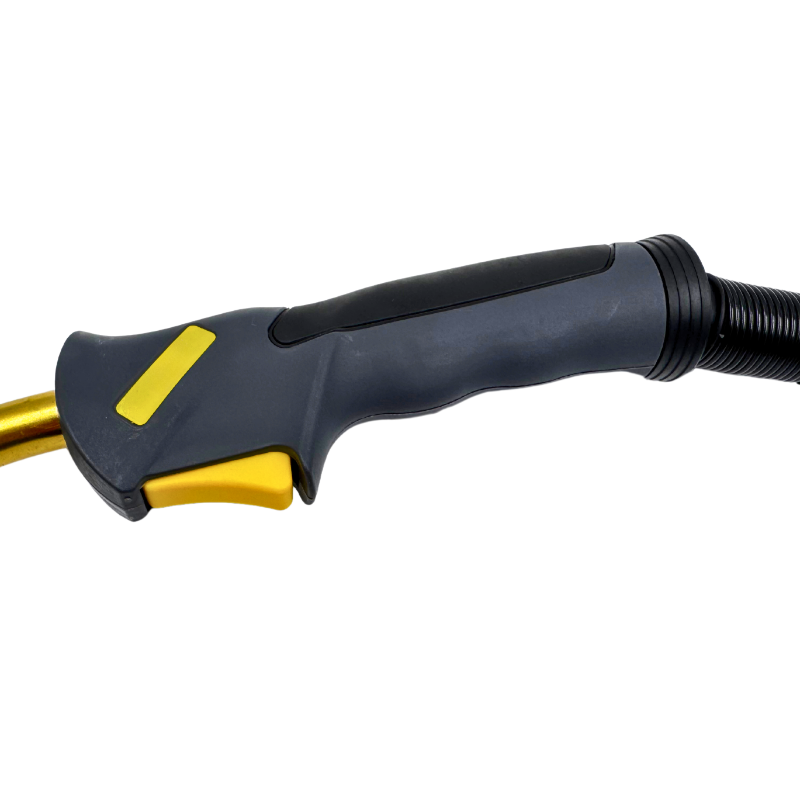

Ergonomic Handle: Comfort‑grip handle with integrated trigger promotes precise control and reduces wrist strain.

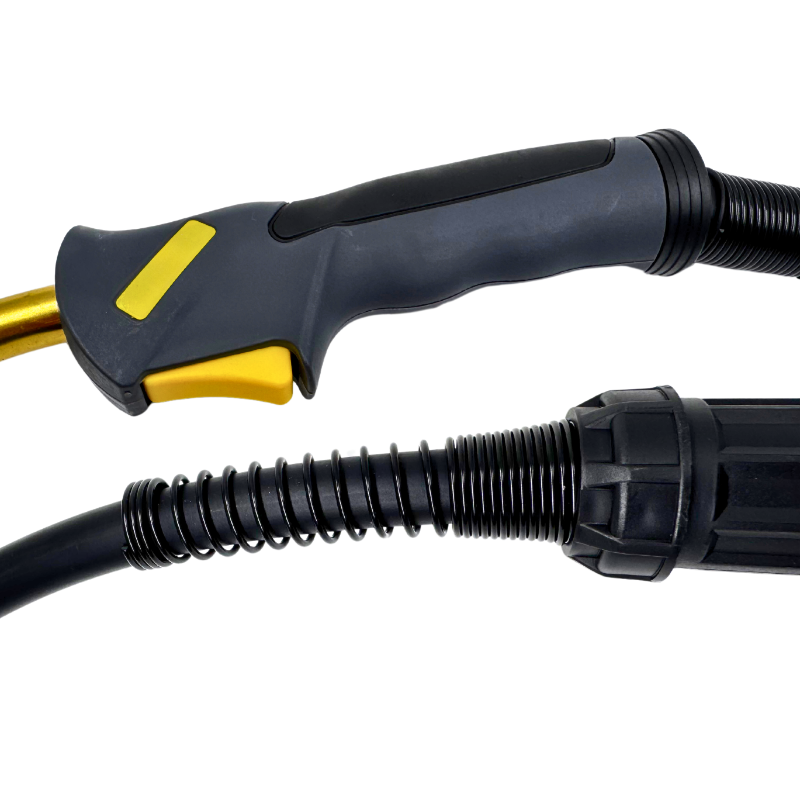

Flexible Cable Assembly: Durable, kink‑resistant hose and cable bundle for smooth wire feed and torch maneuverability.
Simple Maintenance: Quick‑release retaining head and easy‑access components allow fast consumable changes and cleaning.
Share:
Nozzles | ||
NO. | Part Number | Description |
A | LEA36012 | Nozzle 12mm |
LEA36016* | Nozzle 16mm | |
LEA36017 | Tapered Nozzle 17mm | |
LEA36019 | Nozzle 19mm |
Contact Tips | ||
B | LEB63010 | Contact Tip 1.0mm M8×10×30 Ecu |
LEB63012* | Contact Ti p 1.2mm M8×10×30 Ecu | |
LEB63016 | Contact Tip 1.6mm M8×10×30 Ecu | |
LEB630210 | Contact Ti p 1.0mm M8×10×30 Ecu | |
LEB630212 | Contact Ti p 1.2mm M8×10×30 CuCrZr | |
LEB630216 | Contact Ti p 1.6mm M8×10×30 CuCrZr | |
C | LEB628108 | Contact Tip 0.8mm M6×8×28 Ecu |
LEB628010 | Contact Tip 1.0mm M6×8×28 Ecu | |
LEB628112 | Contact Tip 1.2mm M6×8×28 Ecu | |
LEB628208 | Contact Tip 0.8mm M6×8×28 Ecu | |
LEB628210 | Contact Tip 1.0mm M6×8×28 CuCrZr | |
LEB628212 | Contact Tip 1.2mm M6×8×28 CuCrZr |
Liners | ||
D | LEW24032* | Steel Liner 1.0-1.2mm×3m |
LEW36032 | Steel Liner 1.2-1.6mm×3m | |
LGWE274732 | Teflon Liner 1.2-1.6mm ×3m |

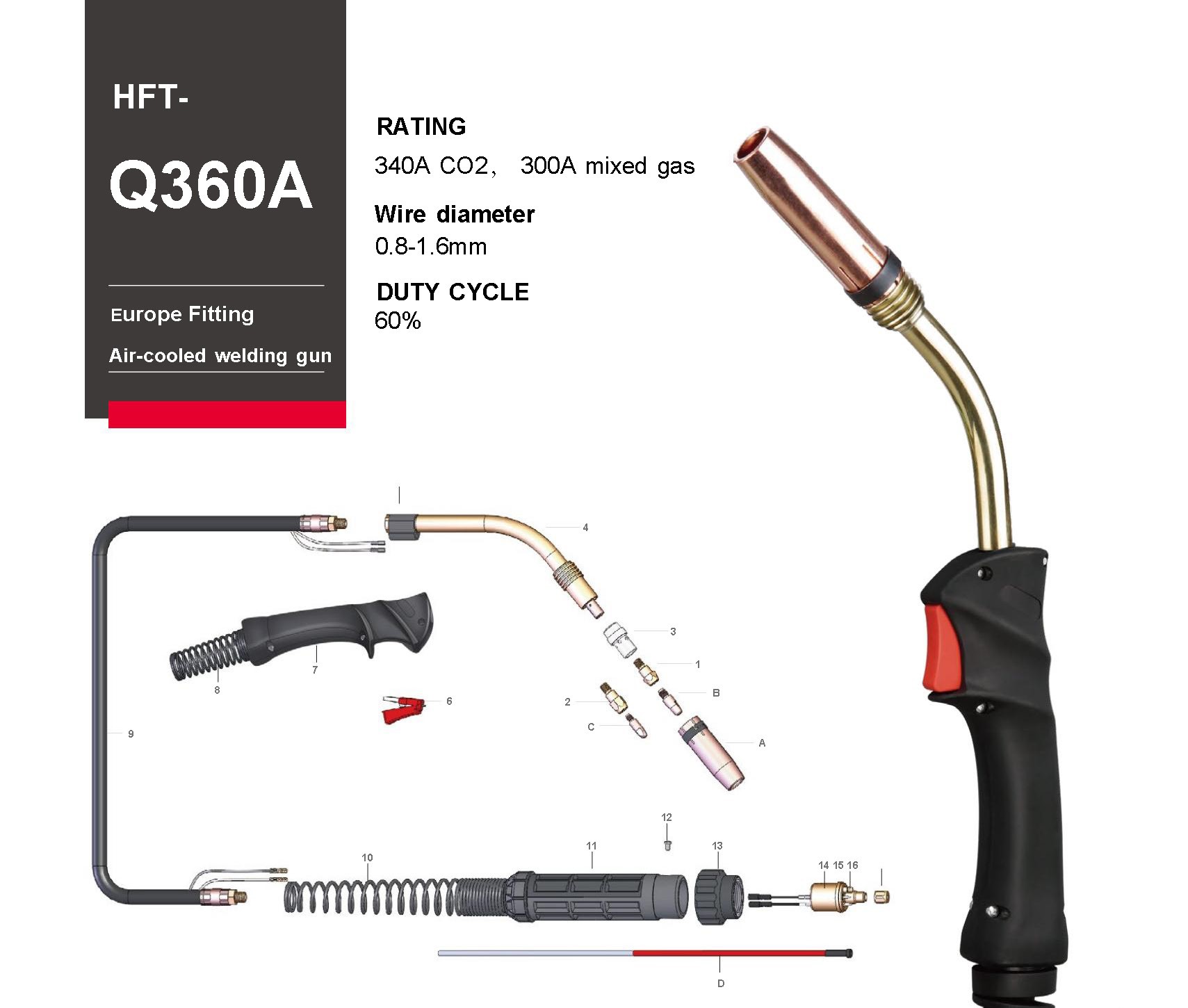

COMPONTENTS | ||
NO. | Part Number | Description |
1 | LEM3628* | Contact Tip Socket M8×28 |
LEM3632 | Contact Tip Socket M8×32 | |
2 | LEC2428 | Contact Tip Socket M6×28 |
LEC2432 | Contact Tip Socket M6×32 | |
3 | LEP3606 | Diffuser Ceramic |
4 | LEG3650 | Gun Neck 50° |
5 | LEC301 | Plastic Body |
6 | LE003 | Trigger |
7 | LEC001 | Handle |
8 | LP80011 | Front Spring Cable Support |
9 | LEL3603 | Cable Assembly 3m |
10 | LEC103 | Back Spring Cable Support |
11 | LEC002 | Back Handle |
12 | LS406 | Screw M4×6 |
13 | LEC003 | Gun Plug Nut |
14 | LE010 | Euro Gun Plug |
15 | Q504010 | O-Ring 4×1 |
16 | LE013 | Nut M10×1 |
*Stands for standard product |
