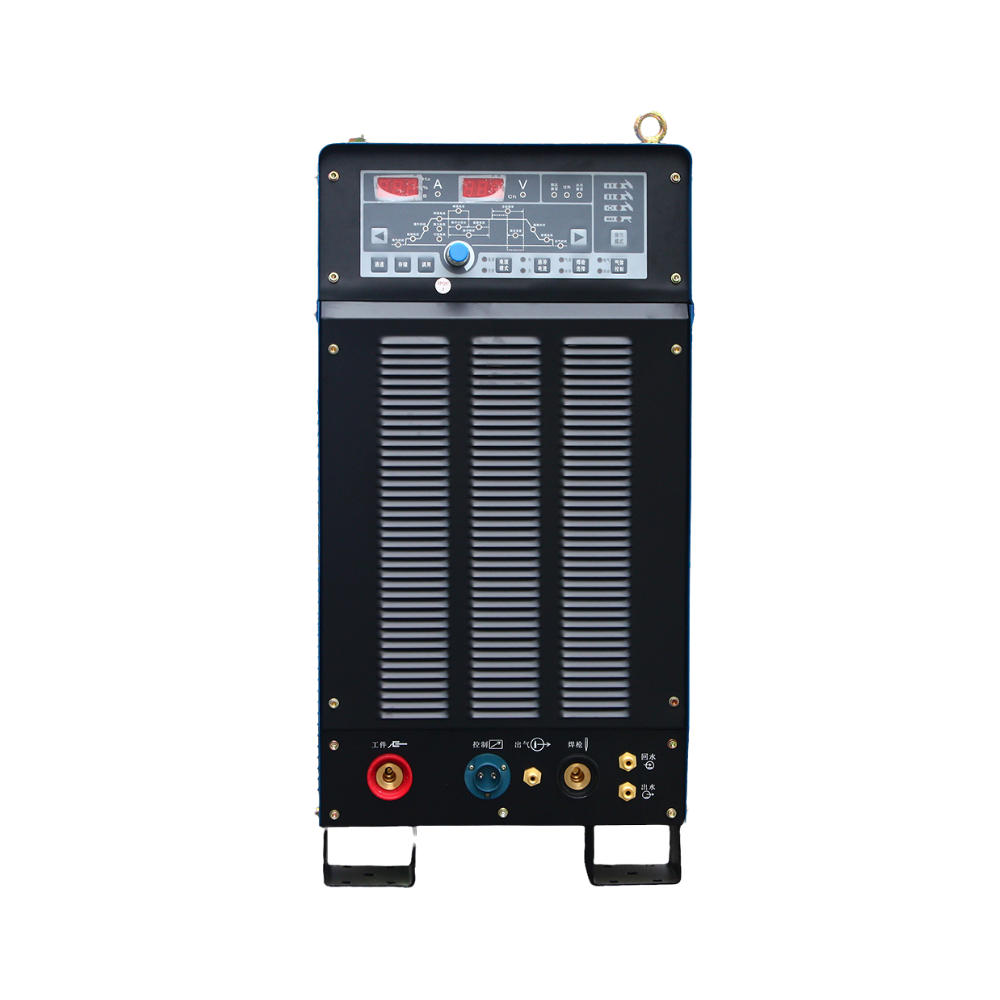

Inverter AC DC Pulsed Argon Arc Welding Machine 500A AC DC Tig welder Water Cooling Aluminum Tig Welder
Advanced Digital Control: Precise, user‑friendly interface for consistent, repeatable welding performance.
DC & AC TIG Welding: Full support for both DC and AC TIG processes to handle a wide range of metals.
Customizable Presets: Save and recall TIG and MMA parameters for quick setup and repeat jobs.
Flexible Trigger Modes: Choose 2‑step, 4‑step, or special 4‑step operation to suit your workflow.
Gas Flow Verification: Built‑in gas check feature simplifies argon flow adjustment for optimal shielding.
Comprehensive Protection: Automatic safeguards against low voltage, phase loss, overheating, and coolant faults.

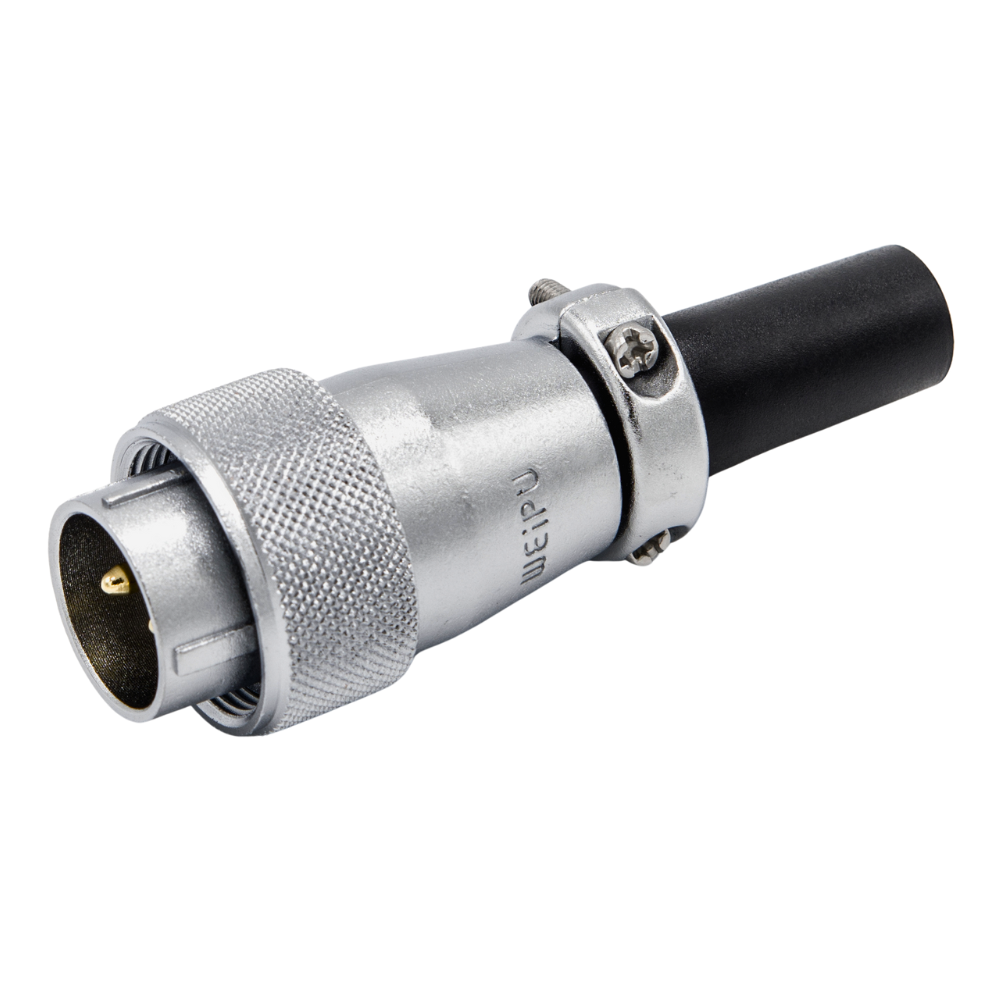

Foot Pedal Ready: WSE‑350MD includes a dedicated pedal connector; WSE‑500/600HD feature a parallel connector for seamless foot control.
Multi‑Metal Capability: Ideal for welding carbon steel, stainless steel, aluminum and its alloys, copper and its alloys, heat‑resistant steels, titanium, and magnesium alloys.
Share:
Description
| Item | Unit | Model | |||
| WSE-350MD | WSE-500HD | WSE-600HD | |||
| Input Power | V/Hz | 3~380±15% 50/60Hz | |||
| Rated Input Capacity | KVA | 15.5 | 25 | 34.6 | |
| Rated Input Current | A | 23.6 | 38 | 52.4 | |
| Rated Output Current | A | 350 | 500 | 600 | |
| Rated Output Voltage | V | 24 | 30 | 34 | |
| Rated Open Circuit Voltage | V | 72 | 72 | 75 | |
| Rated Duty Cycle | 35% | 60% | 60% | ||
| Efficiency | 70% | 72% | 77% | ||
| Power Factor | 0.76 | 0.84 | 0.77 | ||
| Hot Start Current Adjust Range | AC | A | 20～350 | 20~500 | 20~600 |
| DC | A | 10~315 | 10~450 | 10～500 | |
| Welding Current Adjust Range | AC | A | 20~350 | 20～500 | 20～600 |
| DC | A | 10~315 | 10~450 | 10～500 | |
| Pulse Current Adjust Range | AC | A | 20～350 | 20～500 | 20～600 |
| DC | A | 10~315 | 10~450 | 10~500 | |
| Background Current Adjust Range | AC | A | 20~350 | 20~500 | 20~600 |
| DC | A | 10~315 | 10~450 | 10~500 | |
| Crater Current Adjust Range | AC | A | 20~350 | 20~500 | 20～600 |
| DC | A | 10~315 | 10~450 | 10~500 | |
| Pulse Frequency Adjust Range | Hz | 0.2~99.9 | |||
| Pulse Duty Cycle Adjust Range | % | 10%~90% | |||
| AC Frequency Adjust Range | Hz | 20~200 | |||
| AC Wave Balance Adjust Range | -40~40 | ||||
| Current Up-slope Time Adjust Range | 5 | 0~10 | |||
| Current Down-slope Time Adjust Range | 5 | 0~10 | |||
| Gas Pre Flow Time Adjust Range | S | 0~10 | |||
| Gas Post Flow Time Adjust Range | S | 0~20 | |||
| Dimension(L× W×H) | mm | 705×350×650 | 725×385×785 | 725×385×785 | |
| Net Weight | Kg | 52 | 70 | 71 | |
