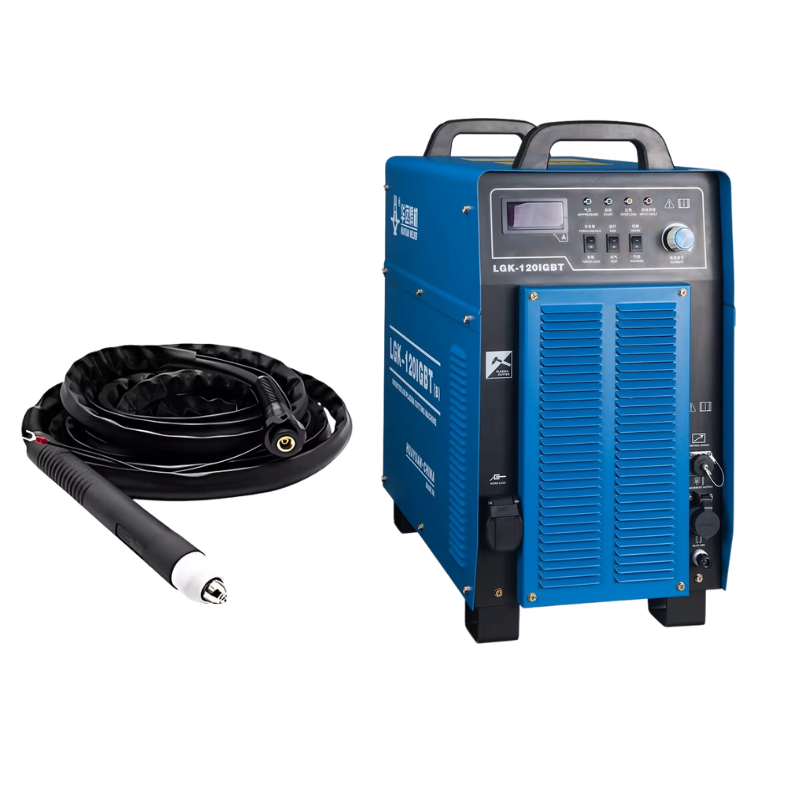

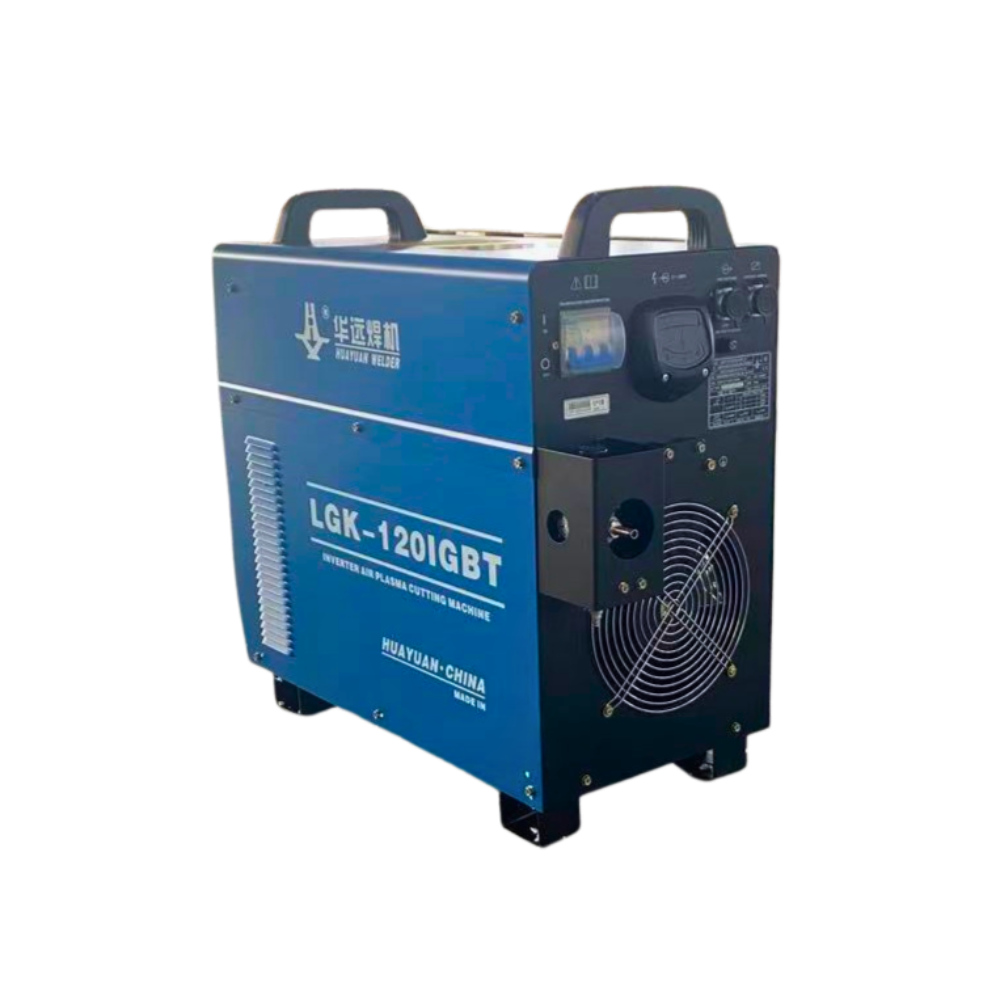

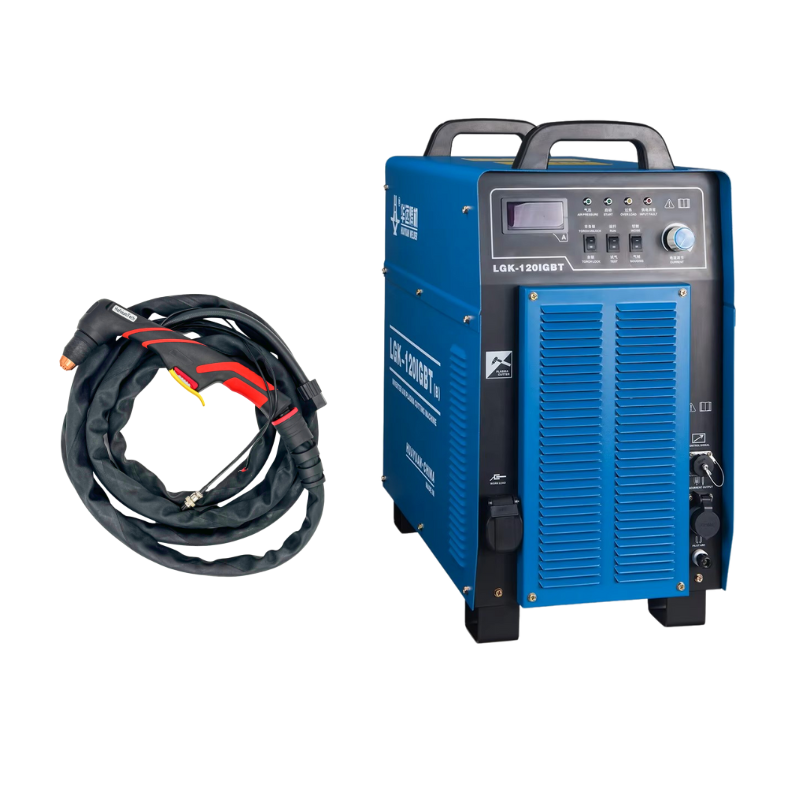

LGK-120IGBT with HFT-160C 8m Torch Plasma Cutter for CNC for Efficient Steel Cutting

Main Features

With plasma torch consumables life monitoring function
With gas pressure and coolant liquid flow displaying, detecting, warning and controlling function
The gas pre-flow, post-flow and current up-slope time can be set separately
With automatic protection of over-heating and lack voltage

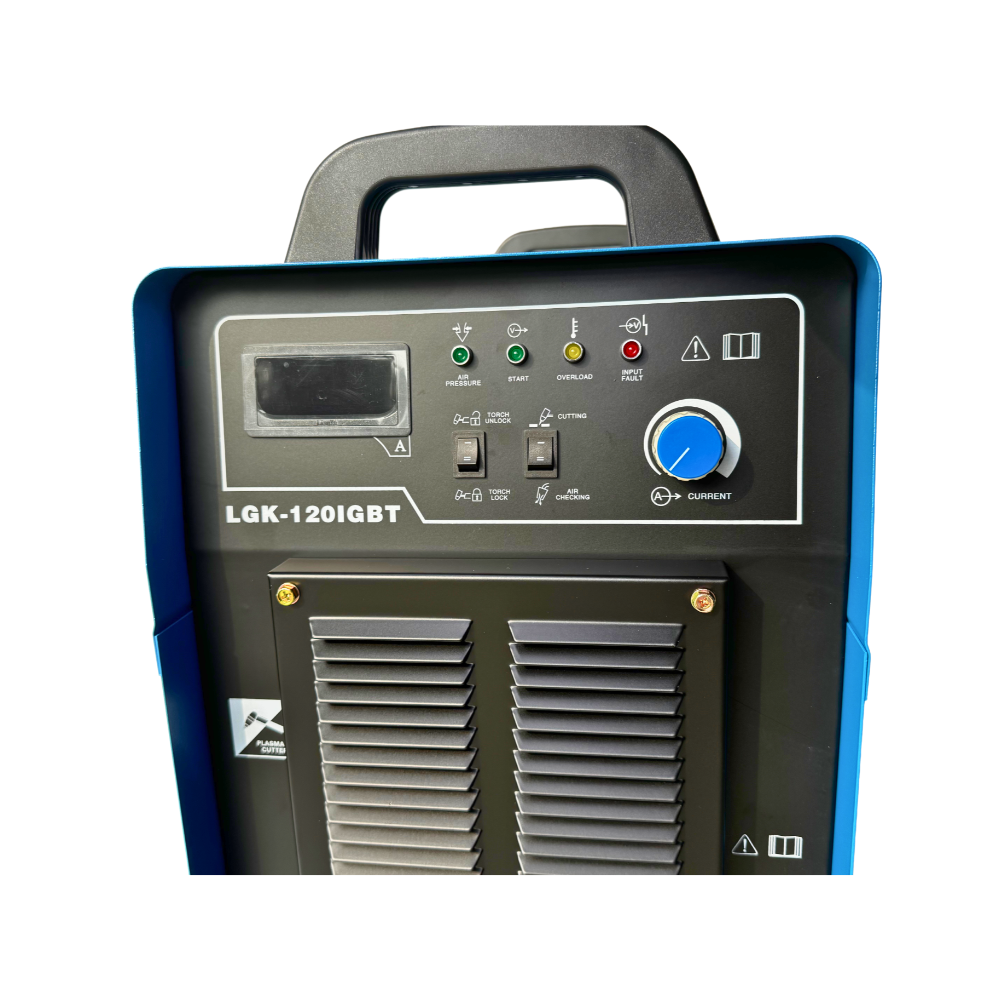

Error code displaying function

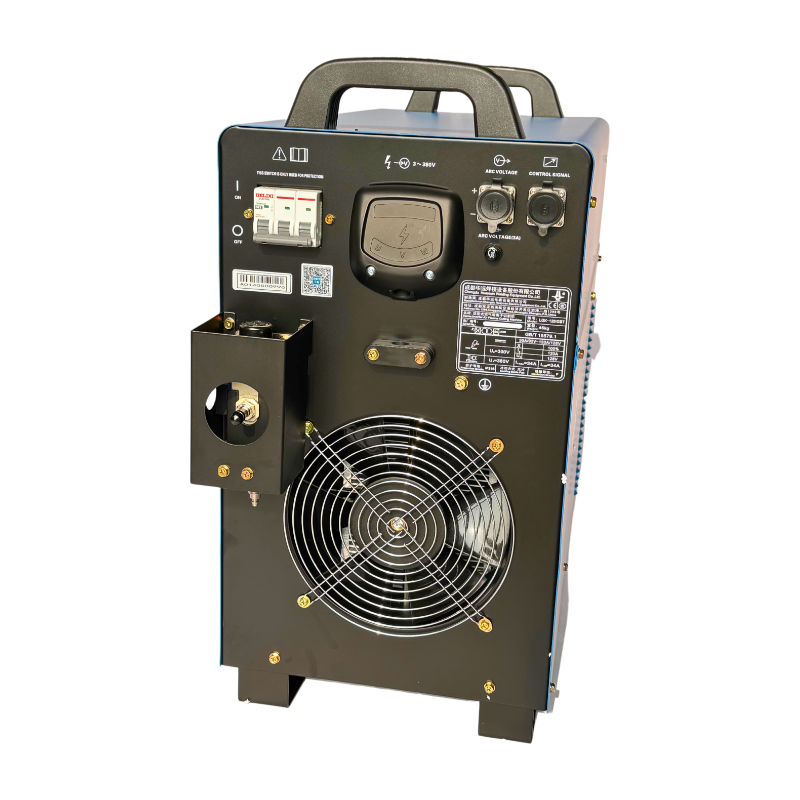

Intelligent fan is used to reduce the dust
LGK- 120 HD with constant pilot arc strike function, which is suitable for grid plate cutting

Product Application

Suit manual and automated cut for carbon steel, alloy steel and nonferrous steel

ltem	Unit	Model
ltem	Unit	LGK-63IGBT	LGK-120IGBT	LGK-160IGBT	LGK-200IGBT
Input Power	V/Hz	3~380±15% 50/60Hz
Rated Input Capacity	KVA	9.5	22.4	32.2	38.8
Rated Input Current	A	14.5	34	49	71
Rated Output Current	A	63	120	160	200
Rated Output Voltage	V	106	128	144	160
Rated Open Circuit Voltage	V	300	300	315	315
Rated Duty Cycle		60%(40℃)	100% (40℃)
Output Current Adjust Range	A	30~63	30~120	40~160	40~200
Arc Voltage Output Ratio		1:1/1:20/1:50/1:100

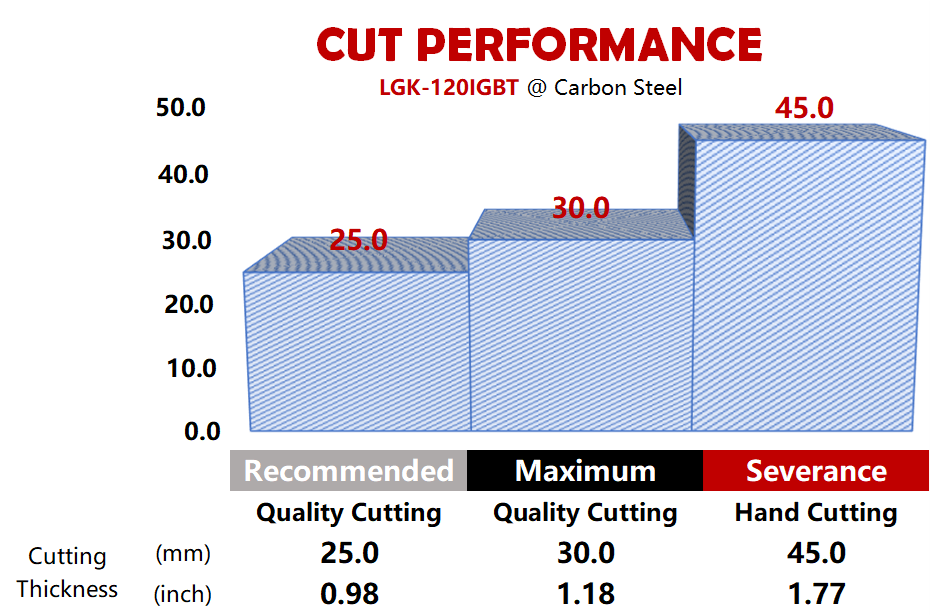

Quality Cut Thickness(Carbon Steel)	mm	15	25	30	35
Handheld Severance Cut Thickness(Carbon Steel)	mm	25	45	55	65
Plasma Gas		Compressed Air
Air Pressure	Mpa	0.3~0.5	0.4~0.6
Torch Cooling Mode		Air Cooling		Air Cooling /Water Cooling
Power Source Cooling Mode		Air Cooling
Insulation Grade		F
Ingress Protection		IP21S
Dimension(LxWxH)	mm	585×280×485	695x320x580	800x380x610	800x380x810
Net Weight	Kg	26	52	73	82
