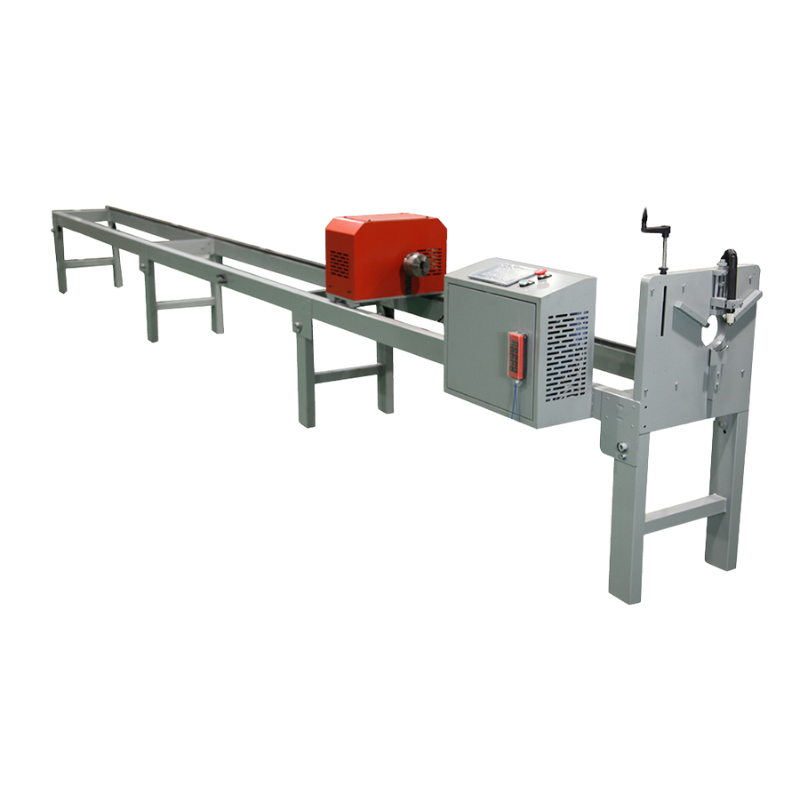

Portable CNC Plasma Metal Pipe Cutting Machine for Steel and Aluminum Portable Plasma 6m Tube Cutting Equipment

Key Features

Construction-Site Ready
Portable plasma cutter engineered for on-site small-diameter pipe processing.
Two-Axis Linked Cutting
– Rotation Axis: Synchronizes pipe spin
– Linear Axis: Pushes torch axially

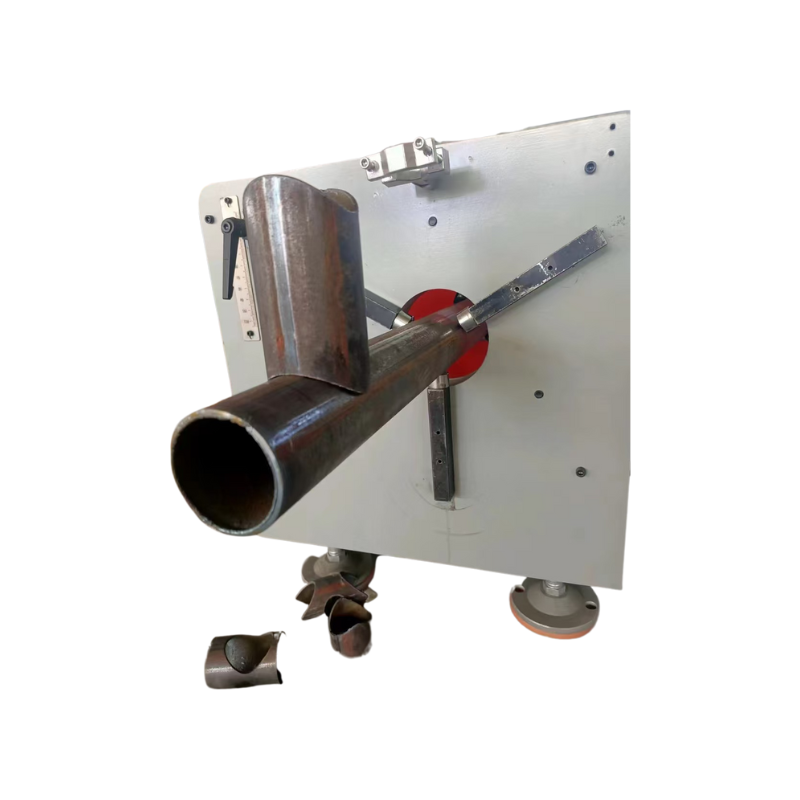

Supports intersecting-pipe profiles and punching (bevel cuts not supported).
Plug-and-Play Operation
No programming required—choose from the built-in graphic library via an intuitive interface.
Modular 6 m Cutting Capacity
Standard 6 m length divided into three 2.2 m segments for easy transport; custom lengths available.
High-Precision Drive System
Heavy-duty gear racks, servo motors, and dual linear guides deliver stable, accurate, premium-quality cuts.
All-Inclusive Support
From machine configuration and assembly to operator training and after-sales service, we provide an affordable, turnkey solution.

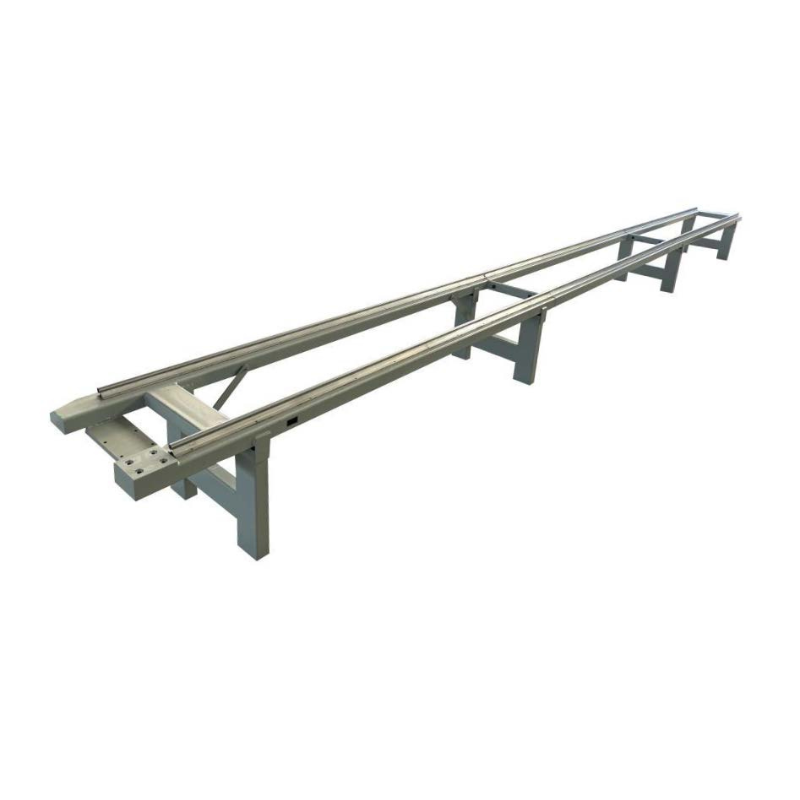

Rugged, Portable Bedframe
Constructed from 100 × 50 × 3 mm square tubing; compact, lightweight, and ready to use directly on-site.

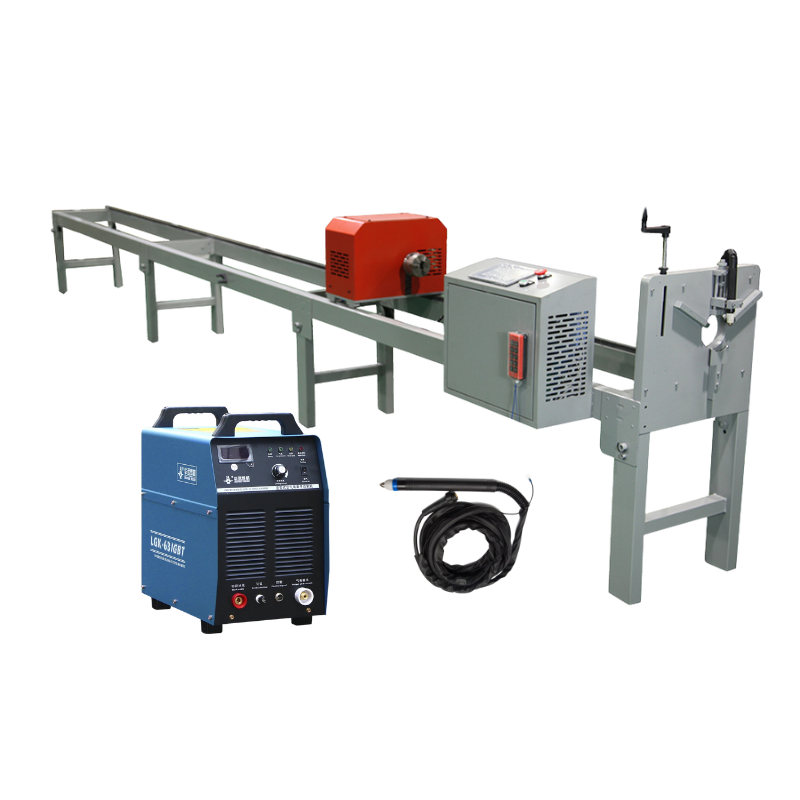

Equipment Configuration List:
No.	Name	Standard Configuration
1	Plasma Power Supply	Configured based on tube thickness
2	Torch	Precision machine torch
3	CNC System	Beijing Sidafeng
4	Relay	Omron
5	Motor Drive	Pfeiderer Stepper

Equipment Technical Parameters:
No.	Model	Technical Parameters
1	Effective Cutting Diameter	Round Tube 19-114 mm
2	Cutting Thickness	Determined by plasma power supply
3	Effective Cutting Tube Length	6000 mm (Customizable)
4	Cutting Precision Error	±0.5 mm
5	Cutting Speed	0-8000 mm/min
6	Reset Precision	±0.01 mm
7	Equipment Size	6600 mm * 500 mm * 1100 mm (Subject to actual product)
8	Equipment Weight	220 KG
9	Power Voltage	220 V
10	Air Source	Air
11	Drive Method	Gear Rack Transmission
12	Guide Rail	Double-sided Cylindrical Guide Rail
13	Chuck Device	Front Pneumatic Three-Jaw Fixture, Rear Manual Three-Jaw Chuck
14	Loading Method	Manual Loading – Automatic Feeding and Cutting
15	Tail Length	200 mm
