✔ Lightweight and easy to carry – Ideal for mobile and outdoor operations (WS-215B1: 5.4kg, WS-218B1: 6.8kg).
✔ Advanced inverter technology – Ensures stable performance and energy efficiency.
✔ TIG (Argon Arc) and MMA (Stick) welding – Versatile for diverse applications.
✔ High-frequency arc ignition - 99.7% success rate for quick, reliable starts.
✔ Concentrated arc with minimal heat distortion – Reduces heat-affected zones for clean, strong welds.
✔ Ultra-low 5A output – Perfect for thin metal sheets (adjustable up to 150A/180A).
✔ Extended tungsten electrode life – Optimized control circuits minimize electrode wear.
✔ Auto gas delay shut-off – Protects welds from oxidation (adjustable: WS-215B1: 2s/5s, WS-218B1: 6s/3s).
✔ Long arc capability (up to 36mm) – WS-218B1 excels in complex or confined spaces.
✔ Extended cable welding – Supports long-distance operations for flexible workspaces.
✔ Easy manual welding – Smooth arc starts, no electrode sticking, compatible with <Ø4.0mm rods.
✔ Adjustable settings – Customize gas delay and output for tailored results.
✔ Materialien: Carbon steel, stainless steel, and thin metal sheets.
✔ Branchen:
Precision parts manufacturing & repairs
Automotive, furniture, fitness equipment, and construction
Decorative metalwork and DIY projects
Included Accessories

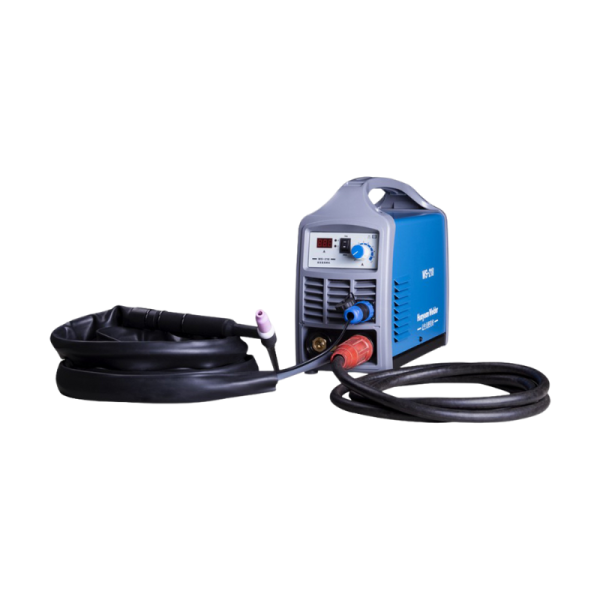

✔ TIG torch (4m cable), ground clamp, quick-connect terminals
✔ Tungsten electrodes (Ø1.6mm/Ø2.4mm), ceramic nozzles, collets
✔ User manual and warranty card
Teilen:
Parameter | Einheit | WS-215B1 | WS-218B1 |
Eingangsleistung | V/Hz | 1~220±15%, 50/60Hz | 1~220±15%, 50/60Hz |
Eingangsnennleistung | kVA | 5.9 | 9.3 |
Nenneingangsstrom | A | 27 | 42 |
No-Load Voltage | V | 58 | 60 |
Duty Cycle | – | 25% (at 40°C) | 25% (at 40°C) |
Wirkungsgrad | – | 85% | 85% |
Leistungsfaktor | – | 0.75 | 0.75 |
Ausgangsstrombereich | A | 5~150 | 5~180 |
Methode der Kühlung | – | Forced Air Cooling | Forced Air Cooling |
Isolationsklasse | – | Class F | Class F |
Protection Rating | – | IP21S | IP21S |
Dimensions (L×W×H) | mm | 357×145×290 | 380×140×280 |
Nettogewicht | kg | 5.4 | 6.8 |
